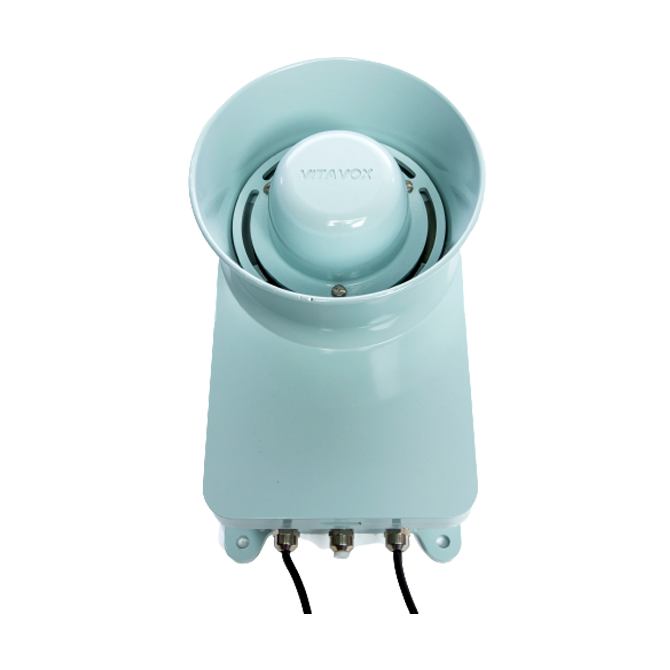

15 & 30W Main Broadcast Loudspeaker

Our Main Broadcast and Intercom Loudspeakers are currently in-service with the British, Australian and New Zealand Royal Navy’s.  Available in both 15 and 30W, they are machined from solid aluminium allow for maximum durability.

Request Datasheet

Request Datasheet for 15 & 30W Main Broadcast Loudspeaker

Please enter your email addres so we can send you your datasheet

    Add to Downloads Remove from Downloads

    15 & 30W Main Broadcast Loudspeaker

    Features & Specs

    • 15 Watt power rating adjustable to 15 Watt, 8 Watt or 4 Watt
    • 30 Watt power rating adjustable by transformer tapping settings
    • Used above and below deck in high noise areas
    • Survives close proximity explosions and destructive blows
    • Part Number:

      VQ91052-02 Main Broadcast 15 Watt

    • VQ96002 Main Broadcast 30 Watt

    • NSN:

      5965-99-902-5744 Main Broadcast 15 Watt

    • 5965-99-902-5744 Main Broadcast 30 Watt

    • Weight

      6.7 Kg

    • Dimensions (mm):

      185 mm wide x 290 mm tall x 175 depth
